White Touch Screen Lab Test Machines Salt Spray Test Machine Corrosion Testing Equipment
Product image & Description:
SO2 Salt Spray Lab Test Machines is designed for surface treatment of corrosion-resistant capacity test for various materials, including paint, electroplating, organic and inorganic film, anti-rust oil, chemical treatment, and then achieves a long period of resistance to corrosion products.

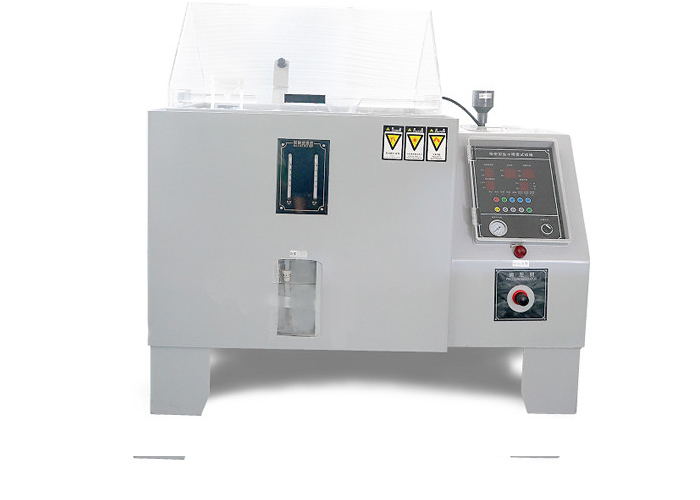

Image:
Control system:
1, Temperature and humidity controller: imported Korea intelligent controller
2, Sensor: PT100 test sensor
3, LED digital display
4, Full digital multiple warning protection system, anti-dry and anti-over temperature
5, With SSR output, imported relay contact
6, Multiple time mode, S, M, H can freely switch
7, Multiple control method for Salt and SO2 switch
8, With defog and desulphuration function to ensure salt and SO2 avoid leakage
9, With flow meter to control the SO2 concentration by rate of flow and time
10, With SO2 filter device, sodium hydroxide and active carbon double filter system to avoid SO2 leakage.
Chamber material:
1, Chamber shell: 8mm corrosion resistance PVC plate, 85℃high temperature resistance.
2, Sample holder: fiberglass rod, corrosion resistance.
3, Pressure barrel: 2.0mm SUS#304, seamless joint.
4, Heater: titanium alloy electric heater, corrosion resistance.
5, Machine support: SECC iron with paint spray, have wheels for sliding.
6, Chamber cover: with imported 8mm PVC acrylic transparent observation window.
7, Cover open method: SNS pneumatic method for uniform performance.
8, Machine cover and body are sealed with water to avoid gas leakage.
9, Gas pipe uses corrosion resistance silicone tube.
10, Equip with double gas filtration device to ensure the discharge gas is not harmful for environment.
Main components:
| Model | GAG-E808-90 |
| Internal Size (L×W×H) | 900x600x500mm |
| External Size (L×W×H) | 1410x880x1280mm |
| Equipment Material | Both inside & outside shell adopt P.V.C rigid plastic board |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 270L |
| Brine Tank Capacity | 25L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
| Air source | 1HP Air pump (provided by buyer) |
Controller x 1set | Sensor x 2pcs |
Pressure regulation valve x 2pcs | Spray magnetic valve x 1pc |
SO2 feeding magnetic valve x 1pc | Cyclic motor x 1pc |
Desulphuration water pump x 1pc | Water inlet magnetic valve x 1pc |
Water level meter x 4pcs | Heater x 1pc |
Air filter x 1pc | O shape sample holder x 16pcs |
V shape sample holder x 12pcs | Sodium chloride x 2 bottles |
Measuring tank x 1pc | Hydrometer x 1pc |
User manual x 1pc | Operation video x 1pc
|
