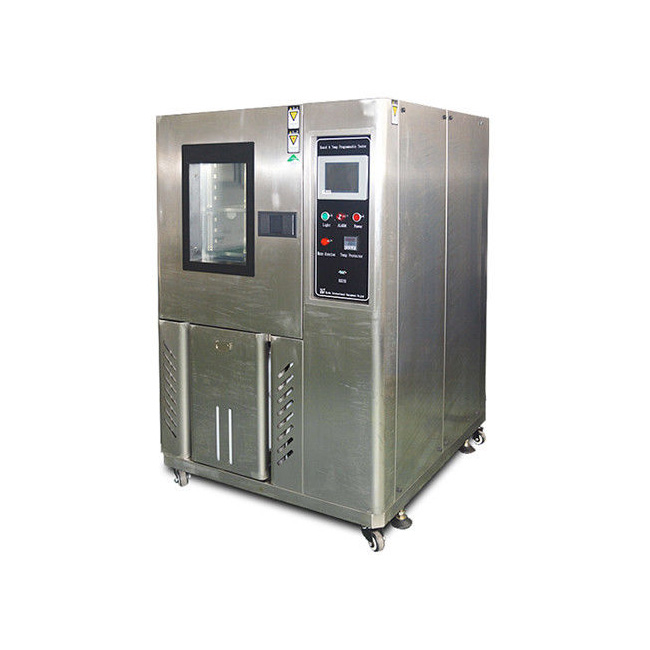

Lab Stainless Steels Constant Temperature Humidity Chamber Material Testing Equipment

New Product

Lab Stainless Steels Constant Temperature Humidity Chamber Material Testing Equipment

Place of Origin: china
Brand Name: GAOGE TECH INSTRUMENT CO,.LTD
Standards:
Model Number:

Product Introduction

USAGE:	Constant Temperature Humidity Chamber	TEMP. RANGE:	-70°C~150°C
HUMID. RANGE:	10~ 98 Percent R.H.	RESOLUTION:	0.01°C, 0.1 Percent, P.I.D Control
INTERIOR DIMENSION(W×D×H):	100×100×80cm	INTERIOR MATERIAL:	Stainless Steel Plate(SUS304)
DISPLAY:	LCD	WEIGHT:	Approx. 600 Kg
POWER:	AC220V±10 Percent 50/60Hz
HIGH LIGHT:	electronic lab equipment , lab testing equipment

Lab Stainless Steels Constant Temperature Humidity Chamber Climate Test Equipment

Lab temperature chamber Door opening alarm Temperature Humidity Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

1. Specifications of Stainless Steels Constant Temperature Humidity Chamber Climate Test Equipment:

Range – 70 to 150°C

GAGGAGGAG

Temp/Humidity	GAG-E702-100-7	GAG-E702-150-7	GAG-E702-225-7
	GAG-E702-408-7	GAG-E702-800-7		GAG-E702-1000-7
Temp-only	GAG-E702-100-7	GAG-E702-150T-7	GAG-E702-225T-7
	GAG-E702-408T-7	GAG-E702-800T-7	GAG-E702-1000T-7
Temperature Range:	-70°C ～150°C
Cooling Capacity	~ 2.5 kW at -50°C	~ 3 kW at -50°C		~ 5 kW at -50°C
	~ 6.5 kW at-50°C	~ 8.5 kW at -50°C		~ 9 kW at - -50°C
Heating System	~ 5 kW	~ 5 kW		~ 5.5 kW
	~6.5 kW	~ 8.5 kW		~ 9 kW
Temperature Fluctuation:	±0.5°C
Temperature Gradient:	±0.5°C～±0.2°C
Heating Rate†:	≥3℃ / min average ( Advance model 5 – 15 ℃ / min)
Cooling Rate†:	≥1℃ / min average (Advance model 5 - 15℃ / min)
Humidity Range:	10％～95％RH (Ref to Normal Humidity Range Diagramed)
Humidity Fluctuation:	±1.5％RH～±2.0％RH
Humidity Gradient:	±3％RH
Dimensions
Workspace dimensions (WxDxH)mm:	500x400x500 GAG-E702-100	600x500x500 GAG-E702-150	750x500x600 GAG-E702-225
	850x650x800 GAG-E702-800	1000x1000x800 GAG-E702-800	1000x1000x1000 GAG-E702-1000
Exterior dimensions (WxDxH)mm:	1400x850x1050	1500x950x1050	1650x950x1150
	1750x1050x1350	1900x1450x1350	1900x1450x1550
Site Requirements
Electrical Supply:	208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)
Humidity Water	Distilled water
Condensate Drain:	1/2" hose connection (gravity drain)

Range – 40 to 150°C

Temp/Humidity	GAG-E702-100-4	GAG-E702-150-4	GAG-E702-225-4
	GAG-E702-408-4	GAG-E702-800-4	GAG-E702-1000-4
Temp-only	GAG-E702-100T-4	GAG-E702-150T-4	GAG-E702-225T-4
	GAG-E702-408T-4	GAG-E702-800T-4	GAG-E702-1000T-4
Temperature Range:	-40°C ～150°C
Cooling Capacity	~ 2 kW at -20°C	~ 2.5 kW at -20°C		~ 4.5 kW at -20°C
	~ 5.5 kW at-20°C	~ 8 kW at -20°C		~ 8.5 kW at - -20°C
Heating System	~ 5 kW	~ 5 kW		~ 5.5 kW
	~6.5 kW	~ 8.5 kW		~ 9 kW
Temperature Fluctuation:	±0.5°C
Temperature Gradient:	±0.5°C～±0.2°C
Heating Rate†:	≥3℃ / min average ( Advance model 5 – 15 ℃ / min)
Cooling Rate†:	≥1℃ / min average (Advance model 5 - 15℃ / min)
Humidity Range:	10％～95％RH (Ref to Normal Humidity Range Diagramed)
Humidity Fluctuation:	±1.5％RH～±2.0％RH
Humidity Gradient:	±3％RH
Dimensions
Workspace dimensions (WxDxH)mm:	500x400x500 GAG-E702-100	600x500x500 GAG-E702-150	750x500x600 GAG-E702-225
	850x650x800 GAG-E702-800	1000x1000x800 GAG-E702-800	1000x1000x1000 GAG-E702-1000
Exterior dimensions (WxDxH)mm:	1400x850x1050	1500x950x1050	1650x950x1150
	1750x1050x1350	1900x1450x1350	1900x1450x1550
Site Requirements
Electrical Supply:	208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)
Humidity Water	Distilled Water
Condensate Drain:	1/2" hose connection (gravity drain)

2. Performance

Get a performance evaluation to help provide the suitable chambers to you.

For better assurance of performance for your temperature and humidity cycling application, Gaoge can provide a guaranteed performance calculation based on your submitted requirements.

Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.

System & Performance Options

Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
Water-cooling system.
Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
Additional shelves, 50 Kg loading
Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters

3. Features of Stainless Steels Constant Temperature Humidity Chamber Climate Test Equipment:

Vice lock type door and foam silicone packing to ensure a perfect seal Cartridge type tank for easy adding and changing of water

Tempered glass window with lamps provides a clear view of samples in the chamber, beneficial during testing Easy cleaning of condenser air-filter to prevent deterioration of refrigeration system

Leakage breaker for power supply Over current protection Overheat / overcool protection Switch-off after alarm for over heating Water empty / Door open alarm Vice lock door type locking mechanism

Standard Features:
